猫盘作为几十块体验群晖的小玩意，存粹当文件分享服务器还是可以的，功耗可以忽略不记

但价格上三位数就不值当了，用 x86 设备装是更优的选择

猫盘性能比较差，单盘位还是 2.5 寸盘，不能当数据主力，重度使用建议配合 Cloud Sync 加密备份到其他云盘

记录一下新装猫盘后需要做的操作

# 三合一修复脚本

LED 灯、硬盘休眠、完美关机 (小猫不支持)

脚本见下：

	#!/bin/sh

	fixhosts(){
	cat > /etc/hosts << \EOF
	127.0.0.1 localhost
	::1 localhost
	127.0.0.1 DS120j
	::1 DS120j

	52.84.166.71 api.themoviedb.org
	52.84.166.68 api.themoviedb.org
	18.65.159.31 api.themoviedb.org
	13.35.0.128 api.themoviedb.org
	99.84.238.181 image.tmdb.org
	13.226.254.58 image.tmdb.org
	65.8.164.121 image.tmdb.org
	54.192.73.28 image.tmdb.org
	EOF
	}

	rc_local_func(){
	if [ "$1" = "120bak" ]; then
	rm /etc/rc.local
	if [ -f /etc/rc.local.bak ]; then
	mv -f /etc/rc.local.bak /etc/rc.local
	fi
	else
	if [ -f /etc/rc.local ]; then
	mv -f /etc/rc.local /etc/rc.local.bak
	fi
	cat > /etc/rc.local << \EOF
	#!/bin/sh
	if [ "$1" = "R" ]
	then
	i2cset -y -f 0 0x45 0x00 0x55
	i2cset -y -f 0 0x45 0x01 0x01
	i2cset -y -f 0 0x45 0x31 0x03
	i2cset -y -f 0 0x45 0x32 0x03
	i2cset -y -f 0 0x45 0x33 0x03
	i2cset -y -f 0 0x45 0x30 0x07
	i2cset -y -f 0 0x45 0x34 128
	i2cset -y -f 0 0x45 0x35 0
	i2cset -y -f 0 0x45 0x36 0

	killall -9 synoscsitmonitor
	sleep 60
	/usr/sbin/ntpdate -u ntp1.aliyun.com
	systemctl stop pkg-scsit-monitor.service

	fi

	if [ "$1" = "G" ]
	then
	i2cset -y -f 0 0x45 0x00 0x55
	i2cset -y -f 0 0x45 0x01 0x01
	i2cset -y -f 0 0x45 0x31 0x03
	i2cset -y -f 0 0x45 0x32 0x03
	i2cset -y -f 0 0x45 0x33 0x03
	i2cset -y -f 0 0x45 0x30 0x07
	i2cset -y -f 0 0x45 0x34 0
	i2cset -y -f 0 0x45 0x35 128
	i2cset -y -f 0 0x45 0x36 0

	killall -9 synoscsitmonitor
	sleep 60
	/usr/sbin/ntpdate -u ntp1.aliyun.com
	systemctl stop pkg-scsit-monitor.service

	fi

	if [ "$1" = "B" ]
	then
	i2cset -y -f 0 0x45 0x00 0x55
	i2cset -y -f 0 0x45 0x01 0x01
	i2cset -y -f 0 0x45 0x31 0x03
	i2cset -y -f 0 0x45 0x32 0x03
	i2cset -y -f 0 0x45 0x33 0x03
	i2cset -y -f 0 0x45 0x30 0x07
	i2cset -y -f 0 0x45 0x34 0
	i2cset -y -f 0 0x45 0x35 0
	i2cset -y -f 0 0x45 0x36 128

	killall -9 synoscsitmonitor
	sleep 60
	/usr/sbin/ntpdate -u ntp1.aliyun.com
	systemctl stop pkg-scsit-monitor.service

	fi

	if [ "$1" = "W" ]
	then
	i2cset -y -f 0 0x45 0x00 0x55
	i2cset -y -f 0 0x45 0x01 0x01
	i2cset -y -f 0 0x45 0x31 0x03
	i2cset -y -f 0 0x45 0x32 0x03
	i2cset -y -f 0 0x45 0x33 0x03
	i2cset -y -f 0 0x45 0x30 0x07
	i2cset -y -f 0 0x45 0x34 128
	i2cset -y -f 0 0x45 0x35 128
	i2cset -y -f 0 0x45 0x36 128

	killall -9 synoscsitmonitor
	sleep 60
	/usr/sbin/ntpdate -u ntp1.aliyun.com
	systemctl stop pkg-scsit-monitor.service

	fi

	if [ "$1" = "" ]
	then
	i2cset -y -f 0 0x45 0x00 0x55
	i2cset -y -f 0 0x45 0x01 0x01
	i2cset -y -f 0 0x45 0x30 0x07

	i2cset -y -f 0 0x45 0x31 0x72
	i2cset -y -f 0 0x45 0x32 0x72
	i2cset -y -f 0 0x45 0x33 0x72

	i2cset -y -f 0 0x45 0x37 0x44
	i2cset -y -f 0 0x45 0x3a 0x55
	i2cset -y -f 0 0x45 0x3d 0x66

	i2cset -y -f 0 0x45 0x38 0x44
	i2cset -y -f 0 0x45 0x3b 0x55
	i2cset -y -f 0 0x45 0x3e 0x66
	i2cset -y -f 0 0x45 0x39 0x40
	i2cset -y -f 0 0x45 0x3c 0x40
	i2cset -y -f 0 0x45 0x3f 0x40

	i2cset -y -f 0 0x45 0x34 128
	i2cset -y -f 0 0x45 0x35 128
	i2cset -y -f 0 0x45 0x36 128

	killall -9 synoscsitmonitor
	sleep 60
	/usr/sbin/ntpdate -u ntp1.aliyun.com
	systemctl stop pkg-scsit-monitor.service

	fi

	if [ "$1" = "X" ]
	then
	i2cset -y -f 0 0x45 0x00 0x55

	killall -9 synoscsitmonitor
	sleep 60
	/usr/sbin/ntpdate -u ntp1.aliyun.com
	systemctl stop pkg-scsit-monitor.service

	fi

	EOF
	if [ "$1" = "120x" ]; then
	cat >> /etc/rc.local << \EOF
	if [ "$1" = "K" ]
	then
	/usr/bin/systemctl --force poweroff
	i2cset -y -f 0 0x45 0x00 0x55
	i2cset -y -f 0 0x45 0x01 0x01
	i2cset -y -f 0 0x45 0x31 0x33
	i2cset -y -f 0 0x45 0x32 0x33
	i2cset -y -f 0 0x45 0x33 0x33
	i2cset -y -f 0 0x45 0x30 0x07
	i2cset -y -f 0 0x45 0x34 128
	i2cset -y -f 0 0x45 0x35 0
	i2cset -y -f 0 0x45 0x36 0
	fi
	EOF
	fi
	if [ "$1" = "120d" ]; then
	cat >> /etc/rc.local << \EOF
	if [ "$1" = "K" ]
	then
	i2cset -y -f 0 0x45 0x77 0xc6
	sleep 1
	reboot
	fi
	EOF
	fi
	chmod 755 /etc/rc.local
	fi
	}

	if [ "$1" = "" ]
	then
	echo -e "\e[1;33m 如果一直失败，可能是引导方式不同，请另寻高明。 \e[0m"
	echo -e "\e[1;31m =================== LonelyGod =================== \e[0m"
	echo -e "\e[1;31m \| \| \e[0m"
	echo -e "\e[1;31m \| 猫盘群晖DSM7.0三合一修复脚本 \| \e[0m"
	echo -e "\e[1;31m \| \| \e[0m"
	echo -e "\e[1;31m ================= https://hin.cool ================= \e[0m"
	echo -e "\e[1;33m bash catd.sh 120x/120d/120bak \e[0m"
	fi

	if [ "$1" = "120x" -o "$1" = "120d" ]; then
	echo -e "\e[1;33m 如果一直失败，可能是引导方式不同，请另寻高明。 \e[0m"
	echo -e "\e[1;31m =================== LonelyGod =================== \e[0m"
	echo -e "\e[1;31m \| \| \e[0m"
	echo -e "\e[1;31m \| 猫盘群晖DSM7.0三合一修复脚本 \| \e[0m"
	echo -e "\e[1;31m \| \| \e[0m"
	echo -e "\e[1;31m ================= https://hin.cool ================= \e[0m"
	rc_local_func $1
	fixhosts
	rm -rf /var/log/*

	sed -i 's#/dev/null#/tmp/scemd.log#g' /etc.defaults/syslog-ng/patterndb.d/scemd.conf
	sed -i 's#/dev/null#/tmp/postgresql.log#g' /etc.defaults/syslog-ng/patterndb.d/postgresql.conf
	sed -i 's#/var/log/scemd.log#/tmp/scemd.log#g' /etc.defaults/syslog-ng/patterndb.d/scemd.conf
	sed -i 's#/var/log/postgresql.log#/tmp/postgresql.log#g' /etc.defaults/syslog-ng/patterndb.d/postgresql.conf
	sed -i 's#/usr/bin/systemctl --force poweroff#/etc/rc.local K#g' /usr/lib/systemd/system/systemd-poweroff.service

	sed -i 's/buzzeroffcfg="0x00"/buzzeroffcfg="0x1b"/g' /etc.defaults/synoinfo.conf
	sed -i 's/enable_fan_debug="0x0"/enable_fan_debug="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_auto_poweron="yes"/support_auto_poweron="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_buzzer="yes"/support_buzzer="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_fan="yes"/support_fan="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_fan_adjust_dual_mode="yes"/support_fan_adjust_dual_mode="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_led_behavior_v2="yes"/support_led_behavior_v2="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_power_recovery="yes"/support_power_recovery="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_wol="yes"/support_wol="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/supportrcpower="yes"/supportrcpower="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/supportsystemperature="yes"/supportsystemperature="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/supportsystempwarning="yes"/supportsystempwarning="no"/g' /etc.defaults/synoinfo.conf
	echo -e "\e[1;33m 成功啦！成功啦！成功啦！立即重启猫盘，Enjoy it! \e[0m"
	rm -f /root/catd.sh
	i2cset -y -f 0 0x45 0x00 0x55
	i2cset -y -f 0 0x45 0x01 0x01
	i2cset -y -f 0 0x45 0x31 0x33
	i2cset -y -f 0 0x45 0x32 0x33
	i2cset -y -f 0 0x45 0x33 0x33
	i2cset -y -f 0 0x45 0x30 0x07
	i2cset -y -f 0 0x45 0x34 0
	i2cset -y -f 0 0x45 0x35 128
	i2cset -y -f 0 0x45 0x36 0
	fi

	if [ "$1" = "120bak" ]; then
	echo -e "\e[1;33m 如果一直失败，可能是引导方式不同，请另寻高明。 \e[0m"
	echo -e "\e[1;31m =================== LonelyGod =================== \e[0m"
	echo -e "\e[1;31m \| \| \e[0m"
	echo -e "\e[1;31m \| 猫盘群晖DSM7.0三合一修复脚本 \| \e[0m"
	echo -e "\e[1;31m \| \| \e[0m"
	echo -e "\e[1;31m ================= https://hin.cool ================= \e[0m"

	rc_local_func $1
	rm -rf /var/log/*

	sed -i 's#/dev/null#/var/log/scemd.log#g' /etc.defaults/syslog-ng/patterndb.d/scemd.conf
	sed -i 's#/dev/null#/var/log/postgresql.log#g' /etc.defaults/syslog-ng/patterndb.d/postgresql.conf
	sed -i 's#/tmp/scemd.log#/var/log/scemd.log#g' /etc.defaults/syslog-ng/patterndb.d/scemd.conf
	sed -i 's#/tmp/postgresql.log#/var/log/postgresql.log#g' /etc.defaults/syslog-ng/patterndb.d/postgresql.conf
	sed -i 's#/etc/rc.local K#/usr/bin/systemctl --force poweroff#g' /usr/lib/systemd/system/systemd-poweroff.service

	sed -i 's/buzzeroffcfg="0x1b"/buzzeroffcfg="0x00"/g' /etc.defaults/synoinfo.conf
	sed -i 's/enable_fan_debug="no"/enable_fan_debug="0x0"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_auto_poweron="no"/support_auto_poweron="yes"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_buzzer="no"/support_buzzer="yes"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_fan="no"/support_fan="yes"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_fan_adjust_dual_mode="no"/support_fan_adjust_dual_mode="yes"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_led_behavior_v2="no"/support_led_behavior_v2="yes"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_power_recovery="no"/support_power_recovery="yes"/g' /etc.defaults/synoinfo.conf
	sed -i 's/support_wol="no"/support_wol="yes"/g' /etc.defaults/synoinfo.conf
	sed -i 's/supportrcpower="no"/supportrcpower="yes"/g' /etc.defaults/synoinfo.conf
	sed -i 's/supportsystemperature="no"/supportsystemperature="yes"/g' /etc.defaults/synoinfo.conf
	sed -i 's/supportsystempwarning="no"/supportsystempwarning="yes"/g' /etc.defaults/synoinfo.conf
	echo -e "\e[1;33m 成功啦！成功啦！成功啦！立即重启猫盘，Enjoy it! \e[0m"
	rm -f /root/catd.sh
	i2cset -y -f 0 0x45 0x00 0x55
	i2cset -y -f 0 0x45 0x01 0x01
	i2cset -y -f 0 0x45 0x31 0x33
	i2cset -y -f 0 0x45 0x32 0x33
	i2cset -y -f 0 0x45 0x33 0x33
	i2cset -y -f 0 0x45 0x30 0x07
	i2cset -y -f 0 0x45 0x34 0
	i2cset -y -f 0 0x45 0x35 128
	i2cset -y -f 0 0x45 0x36 0
	fi
	/usr/bin/systemctl daemon-reload

猫盘安装黑裙流程省略，开启 ssh 省略，在 ssh 上切换 root 用户后执行上述脚本

	# 新建一个脚本文件，并复制上述脚本内容
	vim catd.sh

	# 小猫
	bash catd.sh 120x

	# 大猫
	bash catd.sh 120d

如果终端提示成功，切猫盘灯正常点亮了，证明脚本生效。

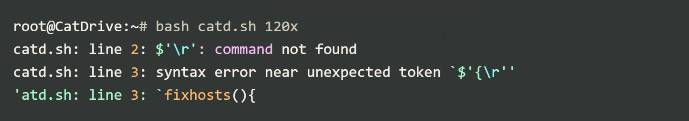

如果有如下提示：

可能是因为 windows 换行符导致的异常，通过

vim -b catd.sh

可以确认是否每一行都有 ^M ，如果有使用如下命令解决：

sed -i 's/\r//g' catd.sh

# 信息中心显示空白修复

	sed -i 's/supportsystempwarning="yes"/supportsystempwarning="no"/g' /etc.defaults/synoinfo.conf
	sed -i 's/supportsystemperature="yes"/supportsystemperature="no"/g' /etc.defaults/synoinfo.conf
